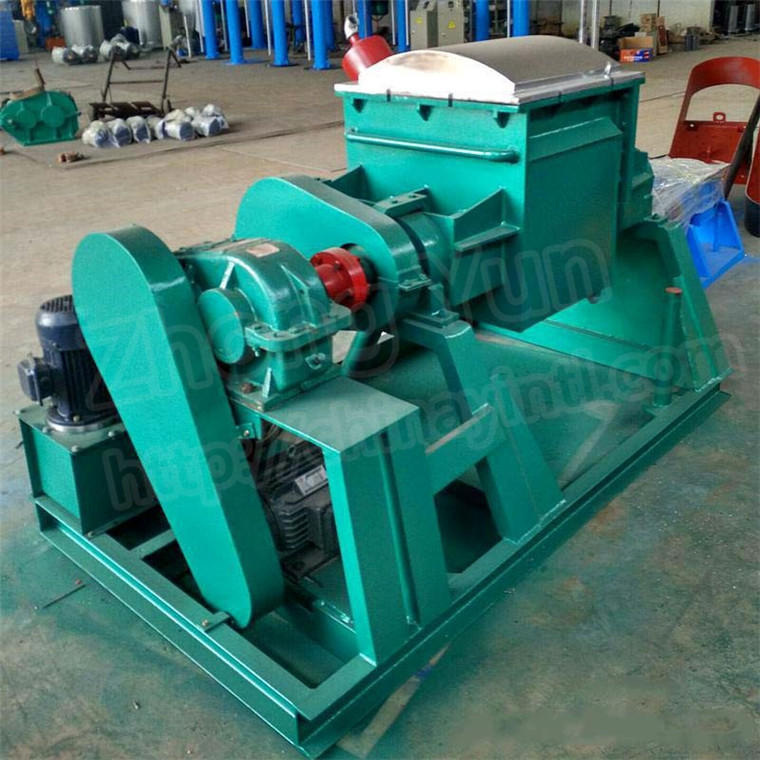

Kneader series

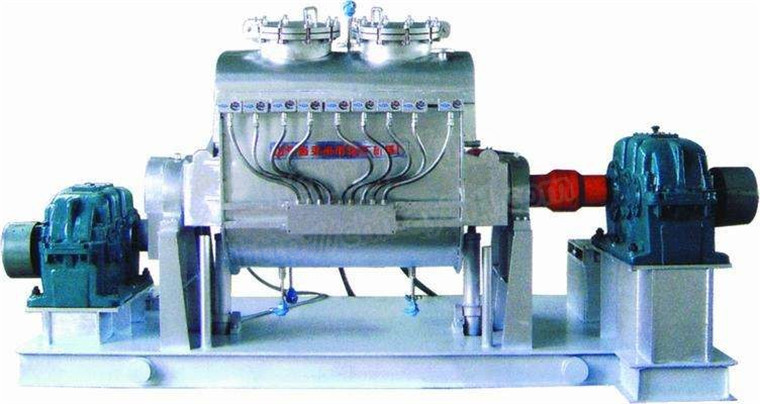

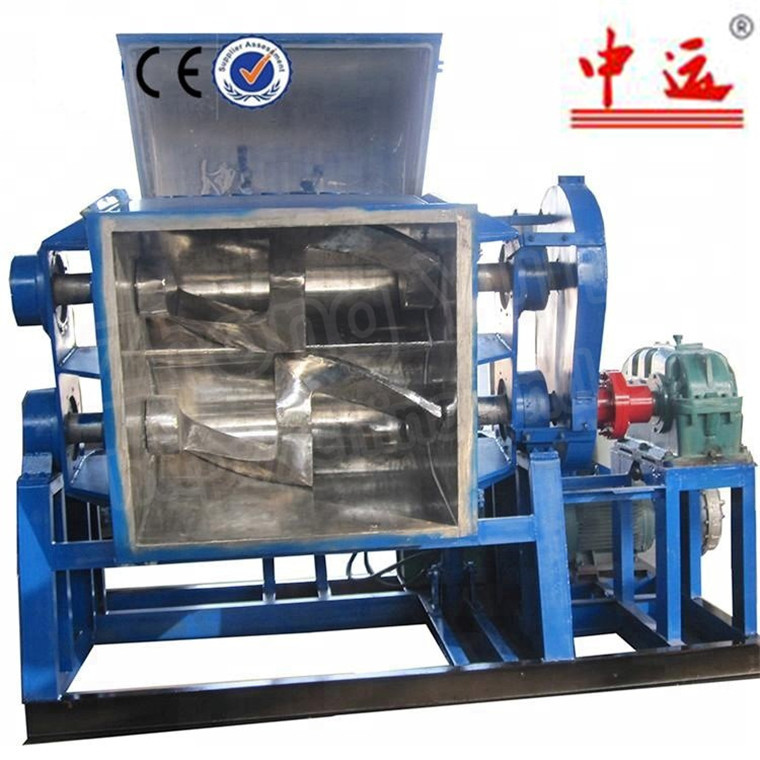

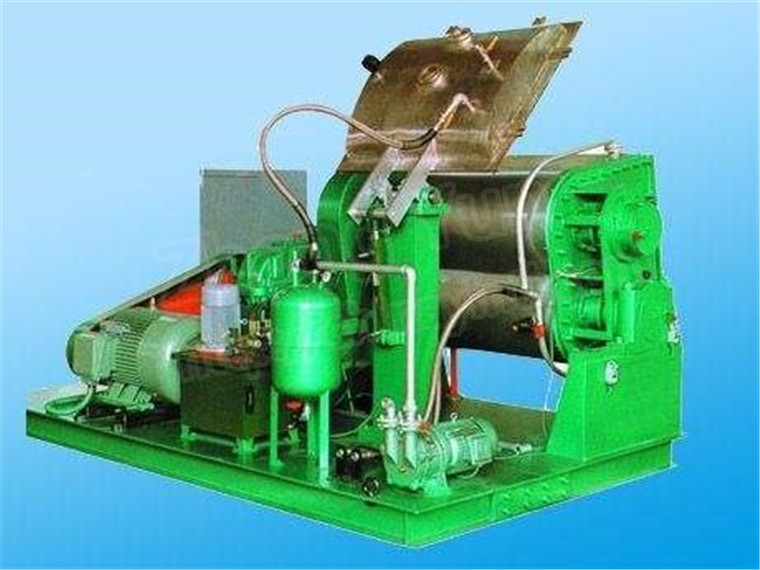

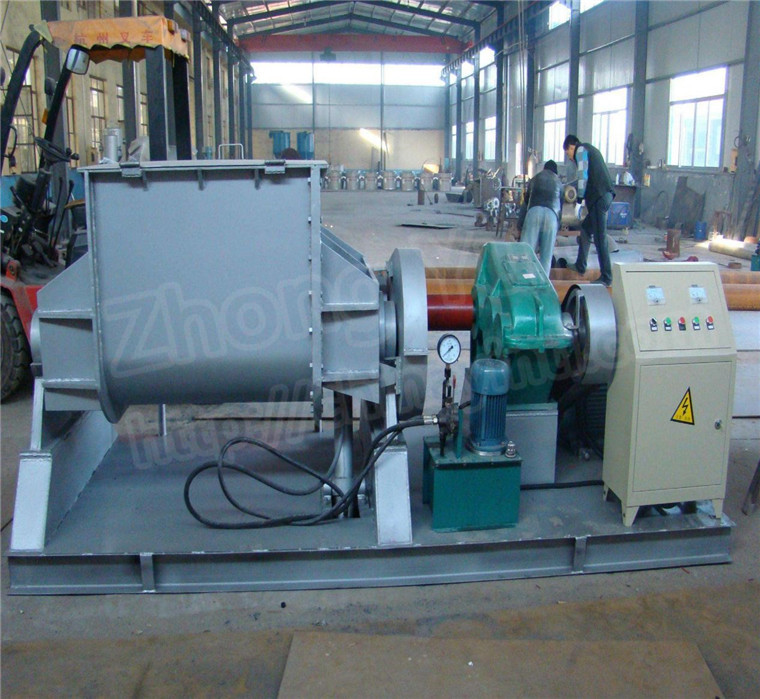

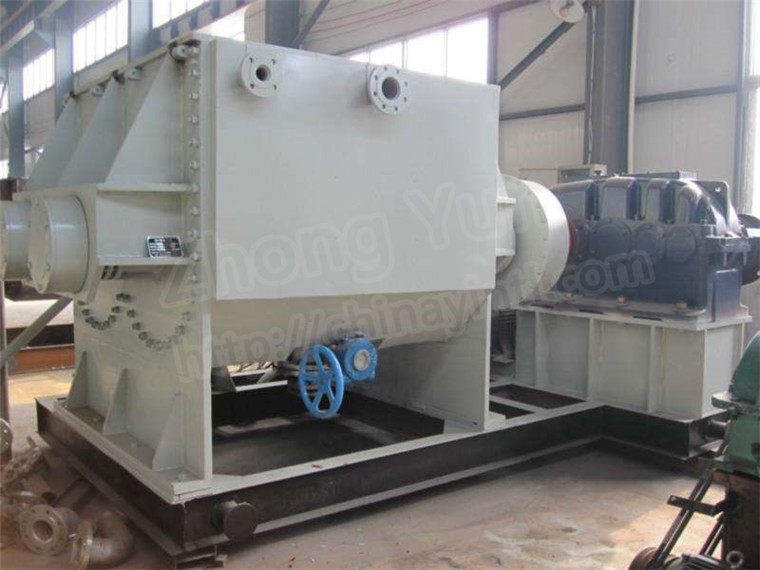

Double Sigma Kneader

1. Capacity of Kneader

2-20000L for your choice.

the work capacity is 60% of total capacity.

2. Application of kneader:

-- Food industry:chewing gum, bubble gum, sugar, chocolate,food gum bases,etc

-- Chemical  industry:BMC/DMC, plastics, silicone rubber, pigments, carbon cellulose, aluminum silver paste, silica gel, pulp,battery paste, silicone resin,

-- Construction industry:dyes,architectural coatings, High viscosity sealant, neutral glass glue,

-- Cosmetics industry: toothpaste and other products

-- Pharmaceutical industry:pharmaceutical agent,medicines

3. Material of kneader:

Contacting part materials:stainless steel , ensure the purity and quality of products.

Other part : stainless steel , carbon steel,glass lined etc.

4. Type of kneader:

* vacuum type or pressure type or normal type.

* heating way:electric and steam heating type , and cooling is also available.

*the seal of shaft agitator is adopted with unique balance construction of vacuum box, Which owns patent.

* cover controlled by hydraulic system.

5. Discharging way of kneader:

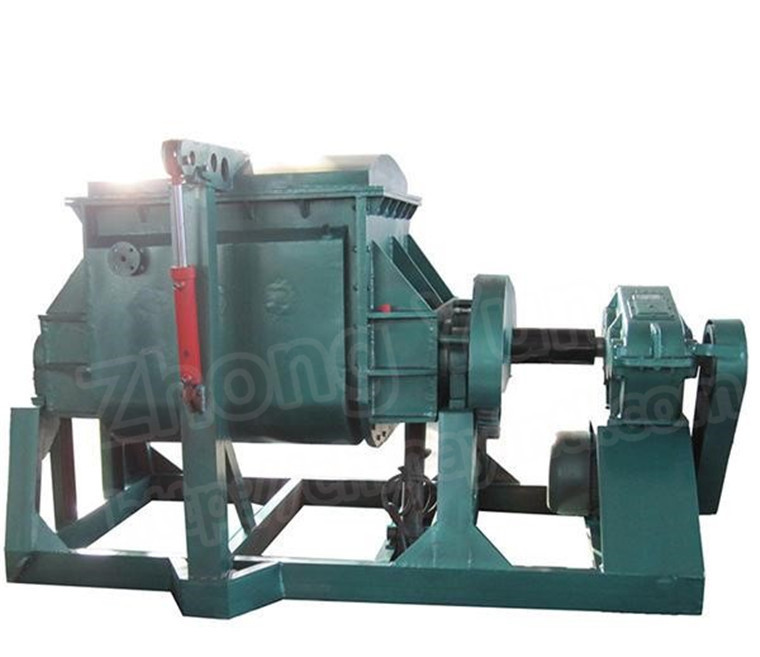

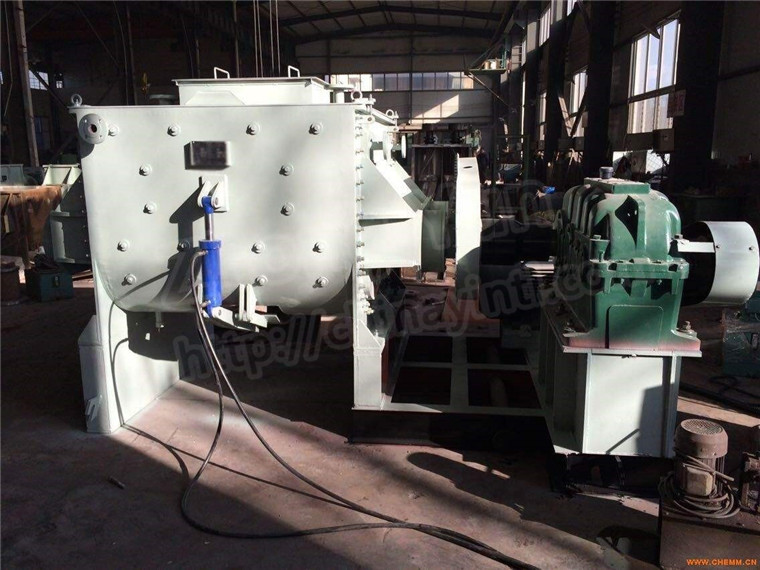

Hydraulic tilting discharge, ball valves discharge and screw extrusion discharge, etc.

6.Technical parameter

Type

NH-5

NH-10

NH-100

NH-300

NH-500

NH-1000

NH-1500

NH-2000

NH-3000

NH-4000

NH-5000

Volume(L)

5

10

100

300

500

1000

1500

2000

3000

4000

5000

Rotation Speed (rpm)

33 23

33 23

35 22

37 21

37 21

35 25

30 16

30 16

38 27

38 27

38 27

Motor Power(kw)

0.75

1.1

3-7.5

11-30

15-37

22-90

22-90

30-110

30-110

45-110

55-132

Heating

Methods

Steam: Pressure

(MPa)

0.3

Electric: Power

(kw)

1

1

4

9

16.2

27

32.4

40

72

72

96

Vacuum(MPa)

-0.094 (Vacuum Kneader)

Pressure(MPa)

0.45 (Pressure Kneader)

0.35 (Pressure Kneader)

0.3(Pressure Kneader)

Weight(kg)

300

400

1250

1600

3000

4500

5800

6500

~11000

~13000

~21000

NOTES:

1.The above parameters are based on the ordinary design.

2.You can choose single drive or double drive.


General kneader

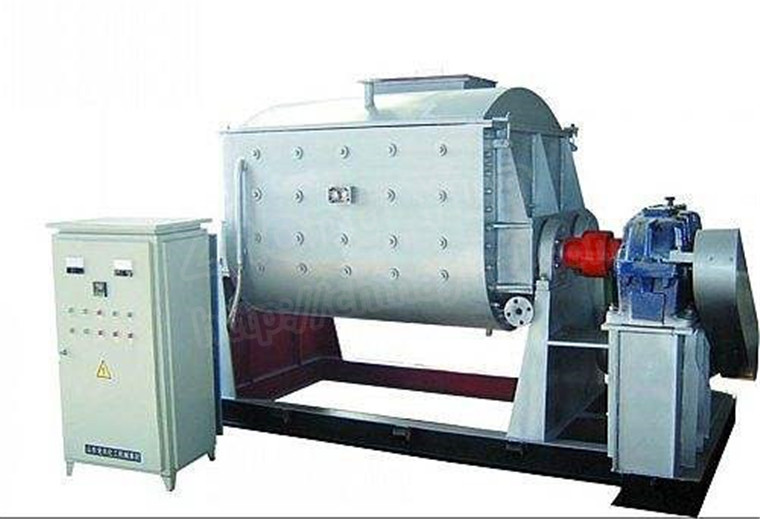

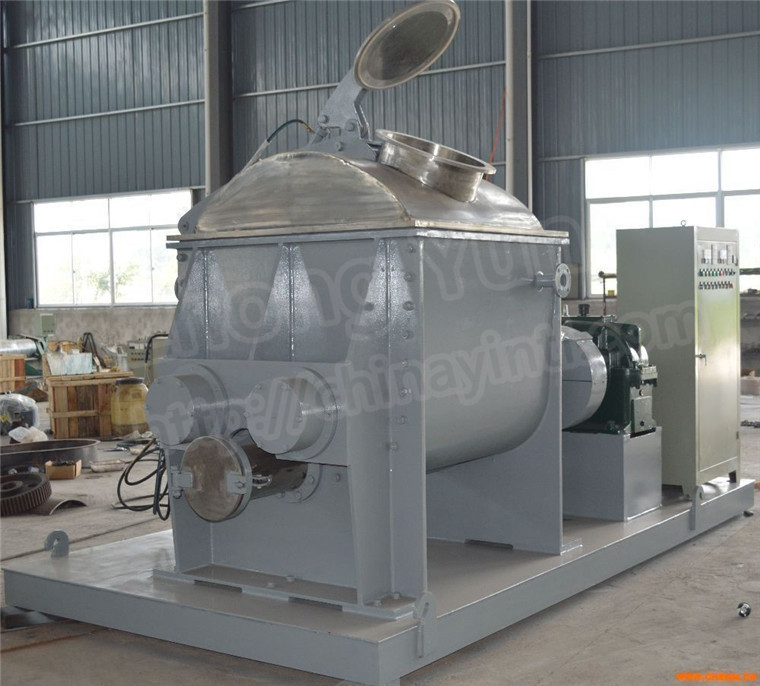

Vacuum kneader

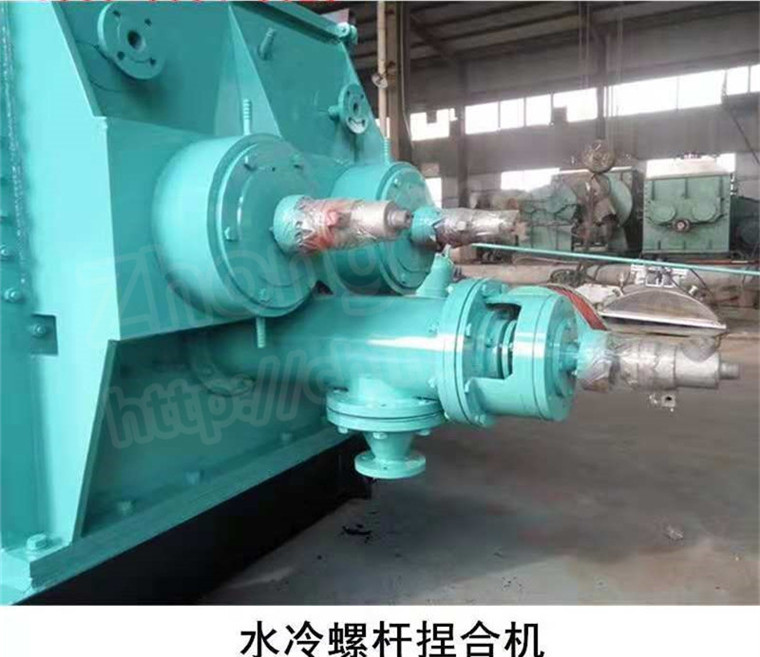

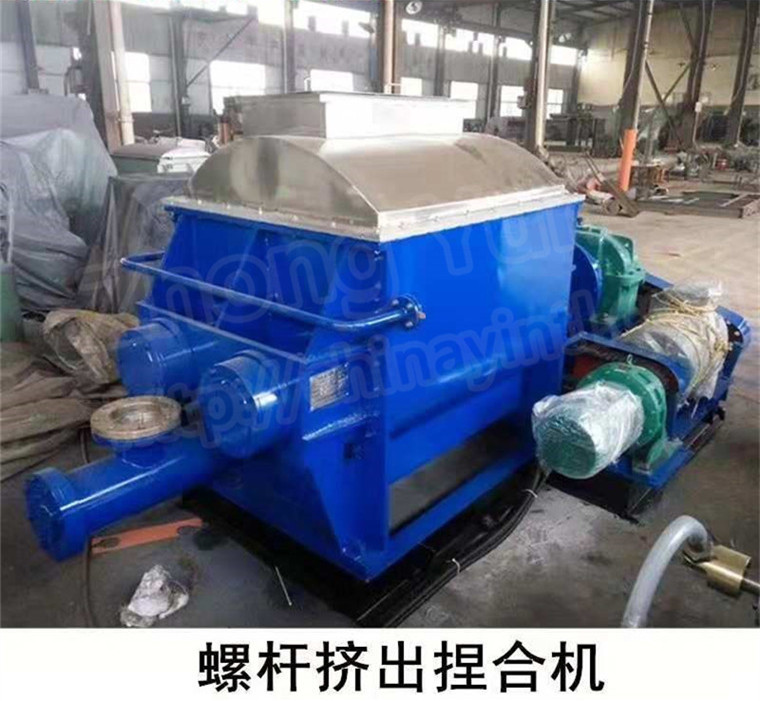

Screw extrusion type kneader



Hot melt adhesive kneader


Carbon kneader




High temperature kneader

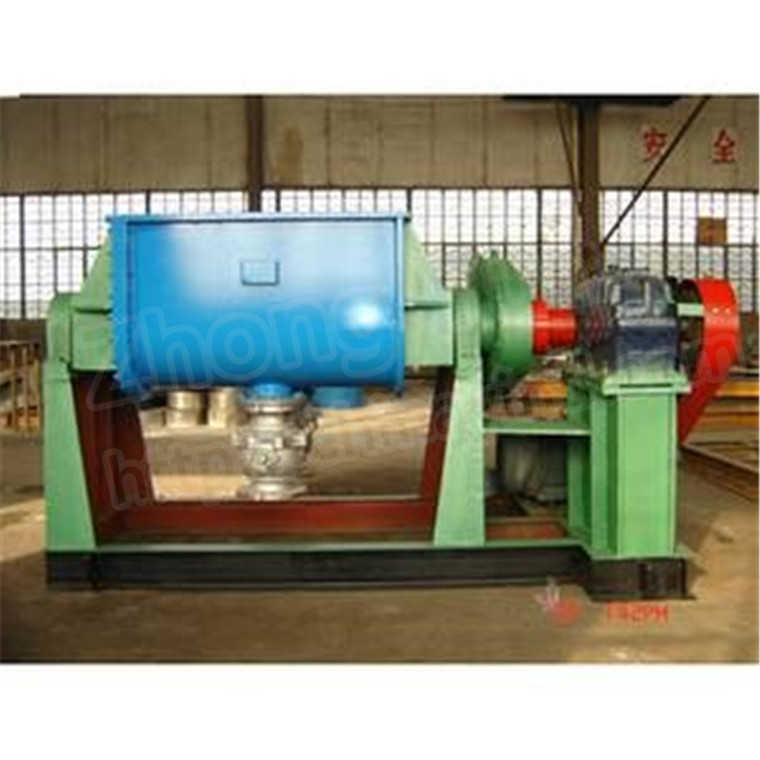

Bottom discharge kneader


Lab kneader



Heavy type kneader


Pressure kneader

Catalogue


Packing and delivery

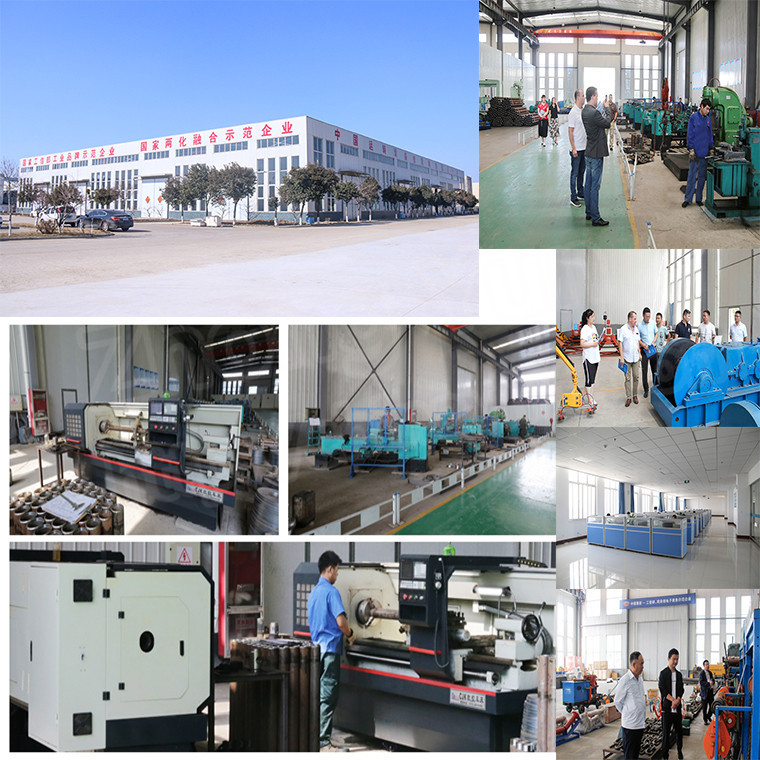

Company Introduction
